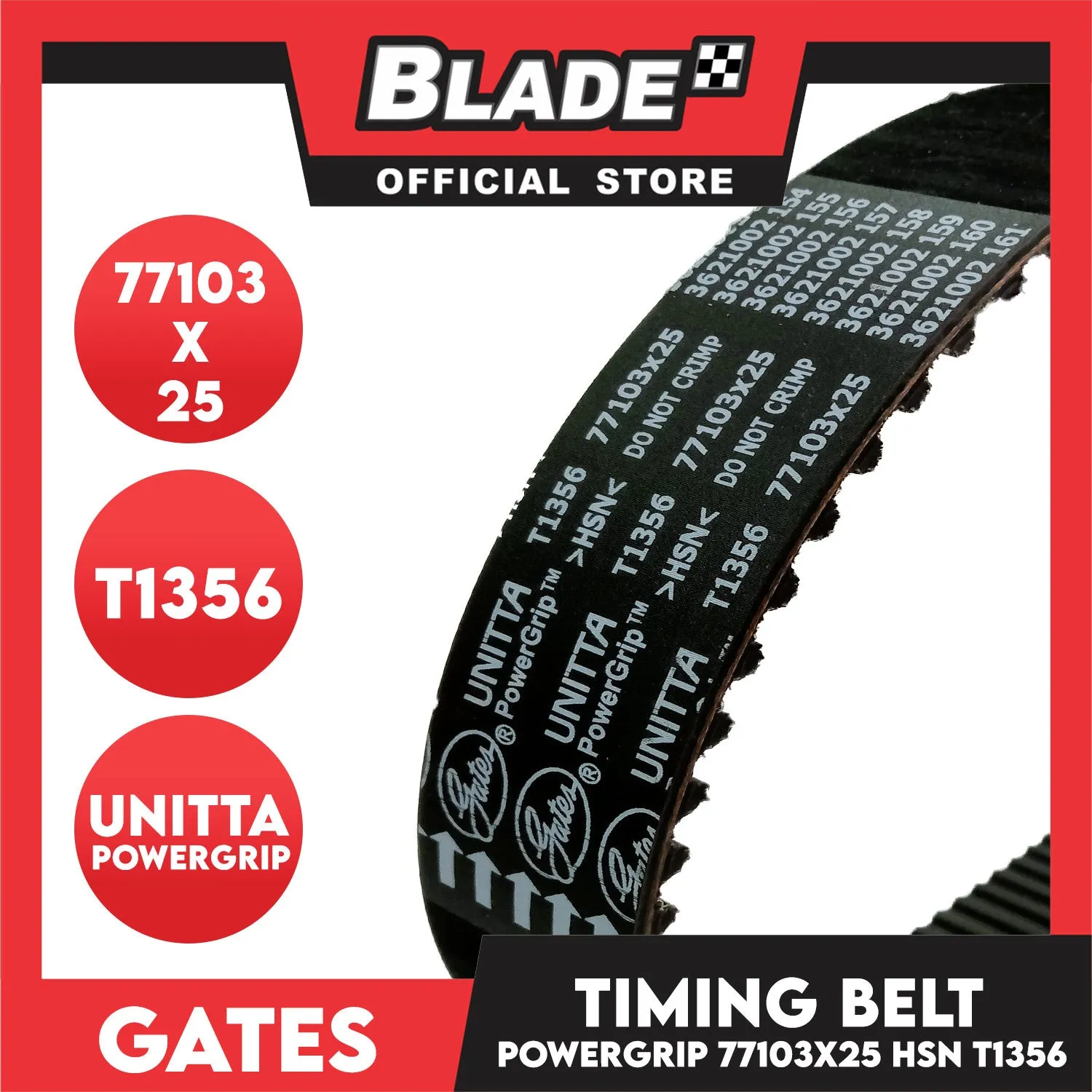

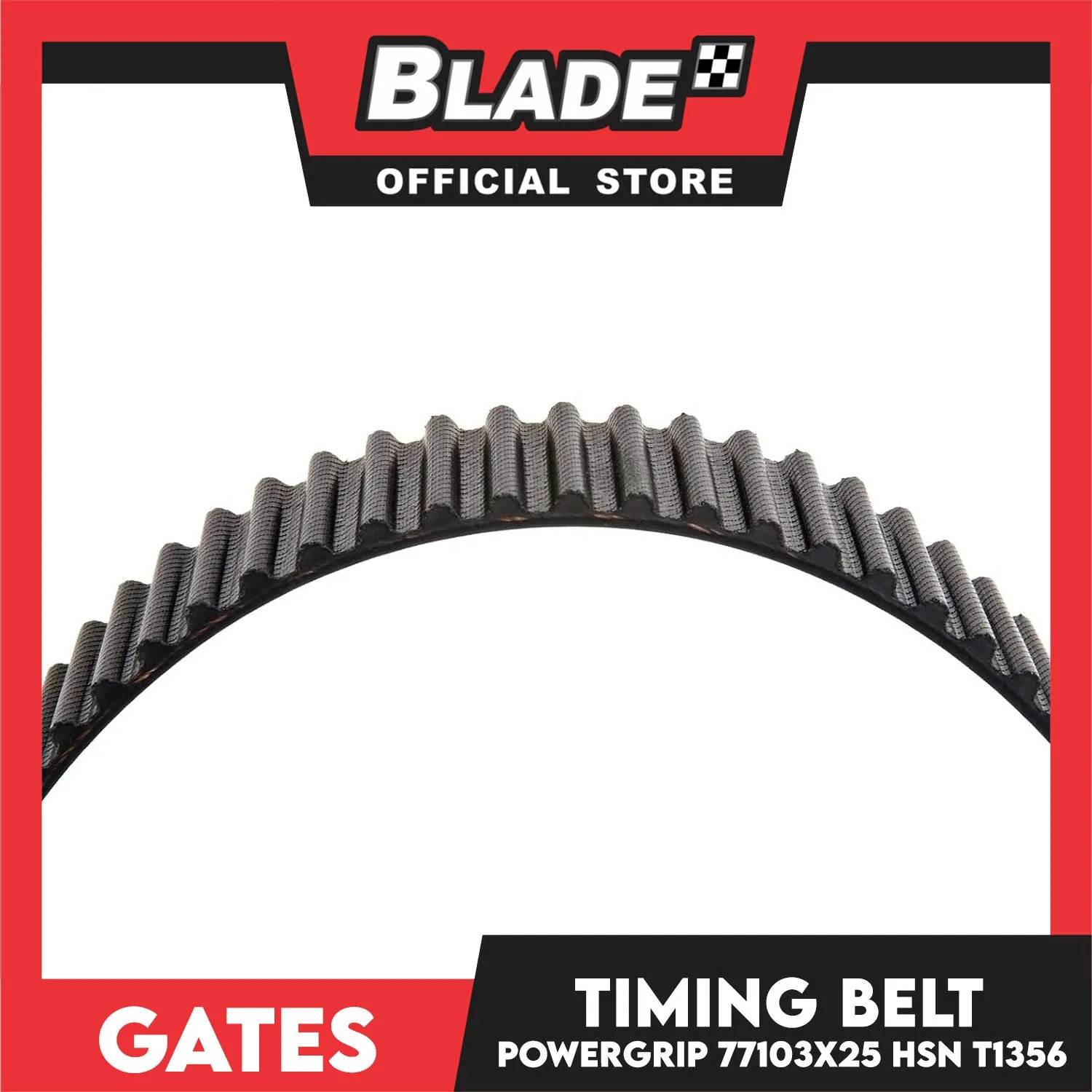

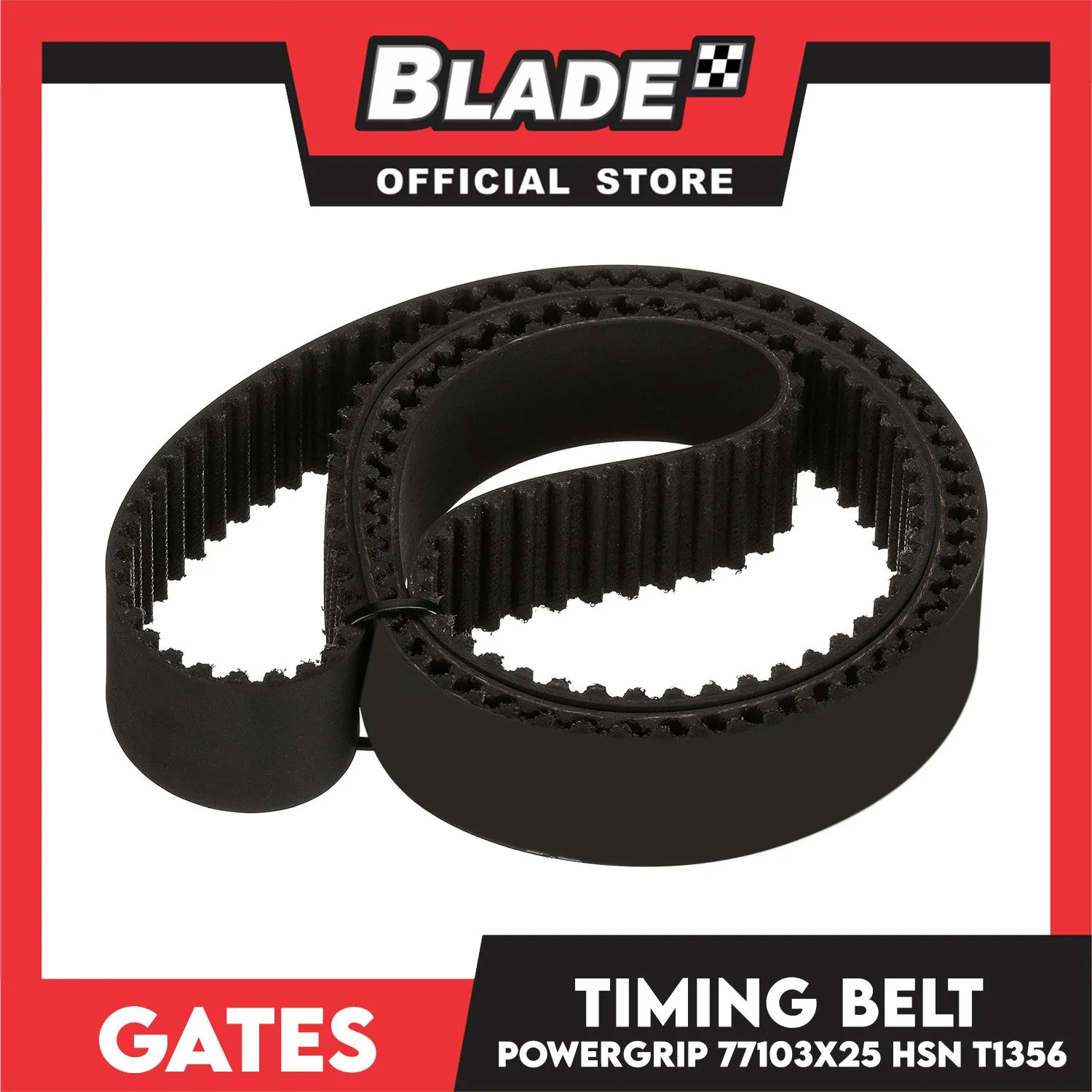

• PowerGrip
• Part No: T1356
• Material: Polychloropren (neoprene)
• Colour: Black
• Number of teeth: 103
• Width (mm): 25
• Length (mm): 824
• Qty: 1pc



• PTFE-infused jackets to reduce frictional losses and tooth shear.
• High grade HNBR rubber for superior heat and contamination resistance.
• Premium tensile members providing maximum strength.
• Aramid reinforced nylon jackets and backsides increase durability and lifetime.
• Genuine warranty equal to OE replacement interval.



• Caution:
• Before any service work on the belt is begun to be sure that the motor or engine is switched off and cannot be started.
• Important:
• Check for worn tensioners and idler pulleys. This is the best time to replace these part these parts if needed.



• Belt Removal:
• Loosen adjustment or pivot bolts.
• Move adjustment unit to minimum position.
• Remove belt.



• Belt Installation:
• Place new belt loosely on pulleys. Do not pry onto pulleys.
• Tension belt according to manufacturer's instruction.
• Run drive 5 minutes and retension. Belts must be tight enough to prevent slipping when drive is fully loaded.
